Tower Internals-Central Pipes in Industrial Applications


Tower internal central pipes play a crucial role in various industrial processes, especially in the chemical, petrochemical, and refining sectors. They are essential components in filtration systems and are commonly utilized in the internals of radial flow reactors.


In the chemical industry, there are primarily two types of flow directions within reactors:

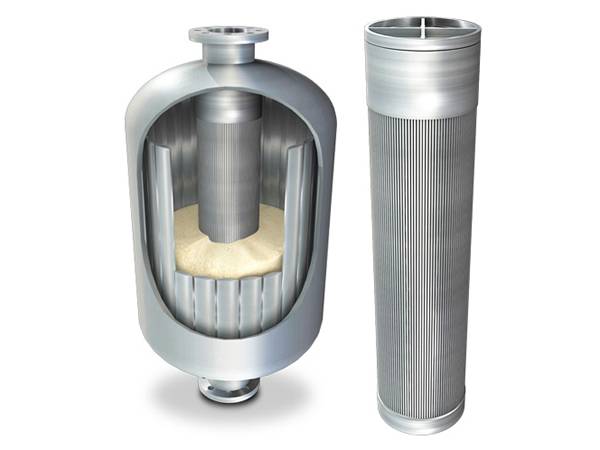

Radial Flow Reactor Internals: In these reactors, the flow pattern is characterized by a radial movement. This means that the gas or fluid moves in a direction either from the outside towards the inside or vice-versa within the reactor. In a typical radial flow reactor setup, the reagent gas follows a specific path. It first flows radially across the catalyst bed through specific components.

These components are usually wire mesh baskets or scallops that are positioned in close proximity to the reactor wall. These outer structures are typically made of perforated plates, meshes, or wedge-wire screens. After traversing through the catalyst bed, the gas is then collected by another set of components.

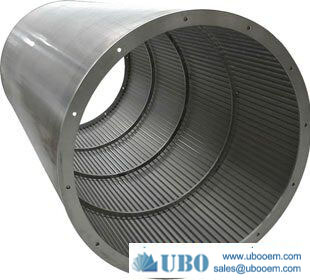

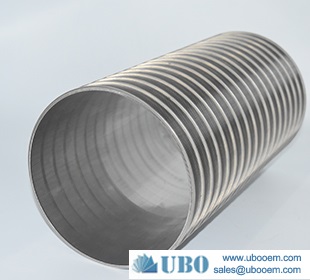

These are often a central pipe or an inner basket, which are also constructed using perforated plates, meshes, or wedge-wire screens. This design allows for efficient contact between the reactants and the catalyst, maximizing the reaction efficiency.

Tower Internals Central Pipes in Industrial Applications

Downflow Reactor Internals: In the realm of chemical engineering, downflow reactor internals are of significant importance in facilitating efficient chemical reactions within reactors.

Downflow reactor internals are widely used in various chemical processes. In the production of ammonia, for example, downflow reactors with carefully designed internals are employed. The reactants, nitrogen, and hydrogen, flow downwards over the catalyst beds, facilitating the Haber process. In petroleum refining, downflow reactors are used in hydrotreating processes. The crude oil or its fractions flow down through the catalyst-filled reactor to remove impurities such as sulfur, nitrogen, and metals. This ensures the production of cleaner fuels.
