| Category: | Cone Filter&Strainer |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | stainless steel filter |
| Application: | Filtration,fuel Filter,Hydraulic Filter,Petroleum, chemical, food, environmental protection, heavy machinery, film, medicine, water treatment, high te |

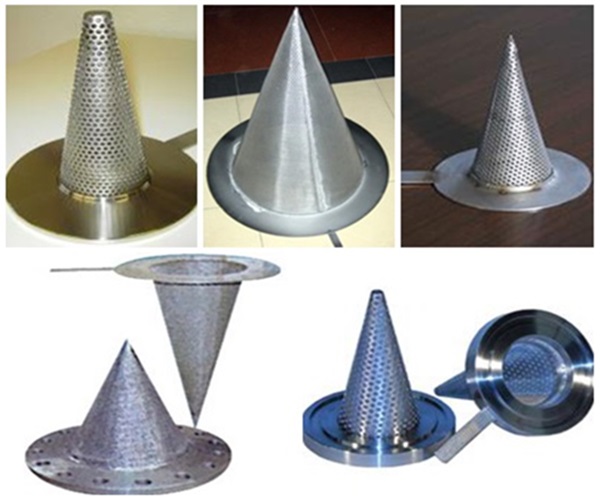

Conical Strainer is also called temporary conical strainer,belonging to pipeline coarse filter series.It is used as pipeline strainers that are designed for new system start-up,removing any coarse, debris such as rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment produce safely.
Major Wire mesh Cone Strainers materials available for pack filters and wire mesh discs: stainless steel woven wire cloth, stainless steel sintered web, phosphate bronze wire cloth and brass wire cloth, etc
Wire mesh Cone Strainers Shapes: round, rectangle elliptical, other shapes.
Disc filters are provided in different shapes: Single piece or multiple layered.
Marginal materials for disc filters: stainless steel, aluminum and nickel-plated copper.
It is used as pipeline strainers that are designed for new system start-up,removing any coars,debris such as rags, welding rods, pipe scale, rust etc which accidentally present within the system to ensure the equipment produce safely.
-- acid and alkali-resistance, high temperature resistance
-- wear resistance, strong stress resistance
-- low cost, easy to install, clean, maintain etc
|

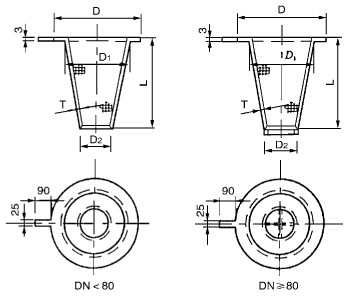

Flange size (inch) |
||||||
|
Pipe size |
Inside diameter |
Outside diameter (class 150-1500) |
||||
|
150/300 |
300 |
600 |
900 |
1500 |
||
|
3/4 |
5/8 |
2-1/8 |
2-1/2 |
2-1/2 |
2-5/8 |
2-5/8 |
|
1 |
3/4 |
2-1/2 |
2-3/4 |
2-3/4 |
3 |
3 |
|
1/2 |
1-1/4 |
3-1/4 |
3-5/8 |
3-5/8 |
3-3/4 |
3-3/4 |
|
2 |
1-3/4 |
4 |
4-1/4 |
4-1/4 |
5-1/2 |
5-1/2 |
|
2-1/2 |
2-1/2 |
4-3/4 |
5 |
5 |
6-3/8 |
6-3/8 |
|
3 |
2-3/4 |
5-1/4 |
5-3/4 |
5-3/4 |
6-1/2 |
6-3/4 |
|
4 |
3-3/4 |
6-3/4 |
7 |
7-1/2 |
8 |
8-1/8 |
|
5 |
4-5/8 |
7-5/8 |
8-1/4 |
9-3/8 |
9-5/8 |
9-7/8 |
|
6 |
5-1/2 |
8-5/8 |
9-3/4 |
10-3/8 |
11-1/4 |
11 |
|
8 |
7-3/8 |
10-7/8 |
12 |
12-1/2 |
14 |
13-3/4 |
|
10 |
9-3/8 |
13-1/4 |
14-1/8 |
15-5/8 |
17 |
17 |
|
12 |
11 |
16 |
16-1/2 |
17-7/8 |
19-1/2 |
20-3/8 |
|
14 |
12-1/4 |
17-3/8 |
18-7/8 |
19 |
20-3/8 |
22-5/8 |
|
16 |
14 |
20-1/8 |
21 |
21-7/8 |
22-1/2 |
25-1/8 |
|
18 |
15-3/4 |
21-1/4 |
23-1/4 |
23-3/4 |
25 |
27-5/8 |
|
20 |
17-1/2 |
23-1/2 |
25-1/2 |
26-5/8 |
27-3/8 |
29-5/8 |
|
24 |
21-1/4 |
27-7/8 |
30-1/4 |
30-7/8 |
32-7/8 |
35-3/8 |
|
30 |
27-1/4 |
34-3/8 |
37-1/8 |
37-7/8 |
39-3/8 |
- |
